1. Product description: 001x4 Gel type strong acid cation exchange resin
Strong acid cation exchange resin 001X4 is a low cross-linking degree of
gel type strong acid cation ion exchange resin, compared with the 001x7,
it contains higher water content and lower Total Exchange Capacity.
001x4 is widely used
for extraction of antibiotics, drug purification, sugar desalination, amino
acid extraction, hard water softening and preparation of water.
Equal to PUROLITE C120E, AMBERLITE IR118
2. Technical Specifications:
MODEL
|
001X4
|
001X6.5
|
001X7
|
001X8
|
|
Type
|
Gel Strong Acid
|
Gel Strong Acid
|
Gel Strong Acid
|
Gel Strong Acid
|
Polymer Matrix Structure
|
Polystyrene -DVB
|
Polystyrene -DVB
|
Polystyrene -DVB
|
Polystyrene -DVB
|
Functional Group
|
-SO3-
|
-SO3-
|
-SO3-
|
-SO3-
|
Ionic Form,as shipped
|
Na+
|
Na+
|
Na+
|
Na+
|
Appearance
|
Clear Spherical Beads
|
Clear Spherical Beads
|
Clear Spherical Beads
|
Clear Spherical Beads
|
Total Exchange Capacity (mmol/ml)
|
≥1.4
|
≥1.8
|
≥1.9
|
≥2.0
|
Quality Exchange Capacity( mmol/g)
|
≥ 4.4
|
≥ 4.5
|
≥ 4.5
|
≥ 4.5
|
Moisture Content ( %)
|
58.0-63.0
|
50.0-55.0
|
47.0-52.0
|
43.0-48.0
|
|
Bulk density (g/ml)
|
0.77-0.87
|
0.77-0.87
|
0.77-0.87
|
0.77-0.87
|
specific density (g/ml)
|
1.25-1.29
|
1.25-1.29
|
1.25-1.29
|
1.25-1.29
|
Particle Size Range ( mm %)
|
0.315-1.25（≥95）
|
0.315-1.25（≥95）
|
0.315-1.25（≥95）
|
0.315-1.25（≥95）
|
uniformity coefficient
|
≤1.6
|
≤1.6
|
≤1.6
|
≤1.6
|
effective diameter mm
|
0.4 – 0.7
|
0.4 – 0.7
|
0.4 – 0.7
|
0.4 – 0.7
|
PH Range
|
0-14
|
0-14
|
0-14
|
0-14
|
Whole beads after(attrition) osmotic attrition %
|
≥90
|
≥90
|
≥90
|
≥90
|
Maximum temperature limit
|
Na+ , <120℃; H+ , <100℃
|
Na+ , <120℃; H+ , <100℃
|
Na+ , <120℃; H+ , <100℃
|
Na+ , <120℃; H+ , <100℃
|
Swelling Na+→ H+
|
14% max
|
12% max
|
10% max
|
8% max
|
3. Packaging Details & Delivery
a. PE bag (25liters) with pallet
b. PE valve bag (25liters) with pallet

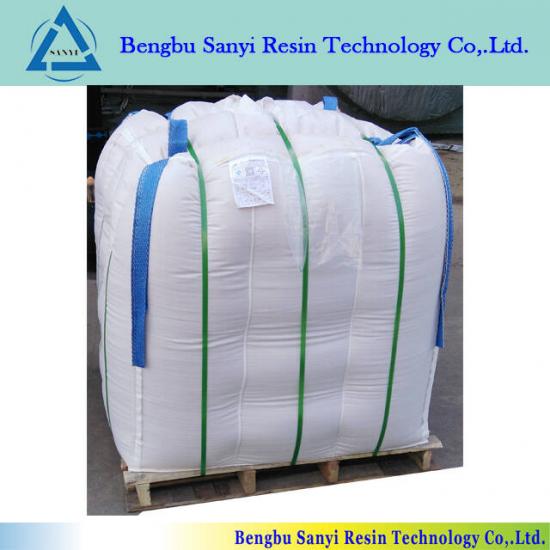

c. Super sack / big bag (1200liters ) with pallet
d. Woven bag lined with plastic bag(25/20kgs)
e. According to users' requirements
Delivery time: Within two weeks after we receive the deposit.
Please pay attention to the followings :
1. Generally, 1x20FCL container can hold 24000 liters, with pallet (48bags/pallet total 20pallets)
2. 1x20FCL container can hold max 25000 liters, with pallet (50bags/pallet total 20pallets)
3. 1x20FCL container can hold max 30000 liters, without pallet
4. As for 001X8, 001X7, 001X6.5, 001X4, 1 cubic meter = 1000 liters = 0.8 ton, 1 PE bags = 25liters = 20 kilograms
5. As for 201X7, 201x4, 1 cubic meter = 1000 liters = 0.7 ton, 1 PE bags = 25liters = 17.5 kilograms
4. Supply Ability: 3000 Cubic Meters per Month
5. Storage Temp: 0℃-40℃, Avoid direct sunlight.
6. Pretreatment of cation
exchange resin:
a. Clean water
After
the new resin is installed, it should be washed or soaked with normal
temperature water (hot water at 50-60℃ is better)
until the water is clear, colorless or less foams.
b. Dilute HCL
solution treatment
The
concentration is 4-5%, the dosage is 2-3BV(2 to 3 times the volume of resin),
the flow rate is 1-1.5BV/hr, and then the resin is rinsed with clean water
until PH to above 5.
c. Dilute NaOH
solution treatment
The
concentration is 4-5%, the dosage is 2-3BV(2 to 3 times the volume of resin),
the flow rate is 1-1.5BV/hr, and then the resin is rinsed with clean water
until PH to below 9.
d. Ion form
transformation of resin
According
to process requirements, when using hydrogen ion form, The operation steps can
be c first and then b; when using sodium ion form, The
operation steps can be b first and
then c; Generally, the new resin is
treated twice as described above.
e. Put into use.
7. Caution:
a. Eye irritant, avoid contact with eyes. in case of eye contact, immediatly flush eyes with plenty of clear water for 10 minutes.
b. Avoid child contact.
c. Dry resin on
floors may cause falls.
8. Our Service
a. Your inquiry related to our products or prices will be replied in 12 hours.
b. All our products have high quality warranties.
c. Sample order can be delivered within 2 working days, small order 5-7 working days, mass order two weeks.
d. Sample can be offered by free,customers just need to pay the freight.But the freight can be returned to our customer after he/she places formal order with us.
9. Our Factory
More than 70000 square meters
Testing Center
